Hilda Well

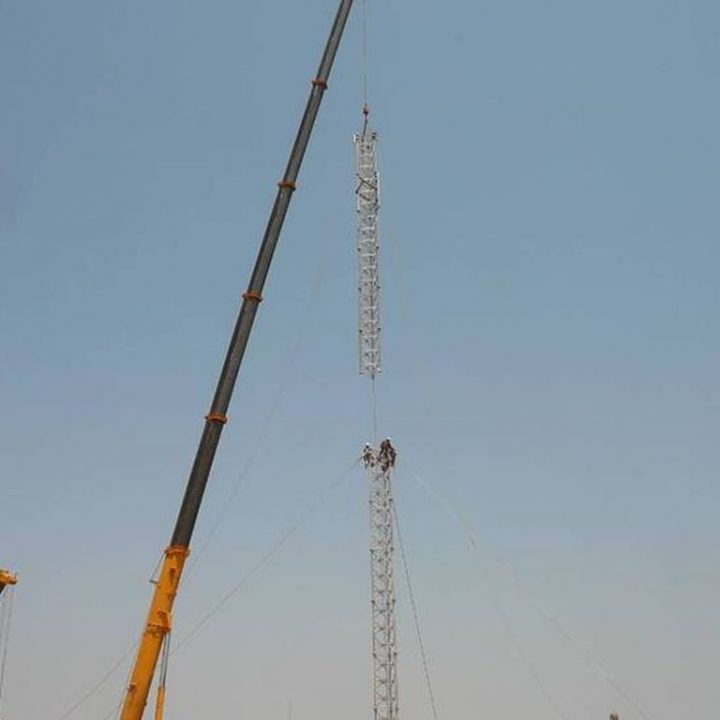

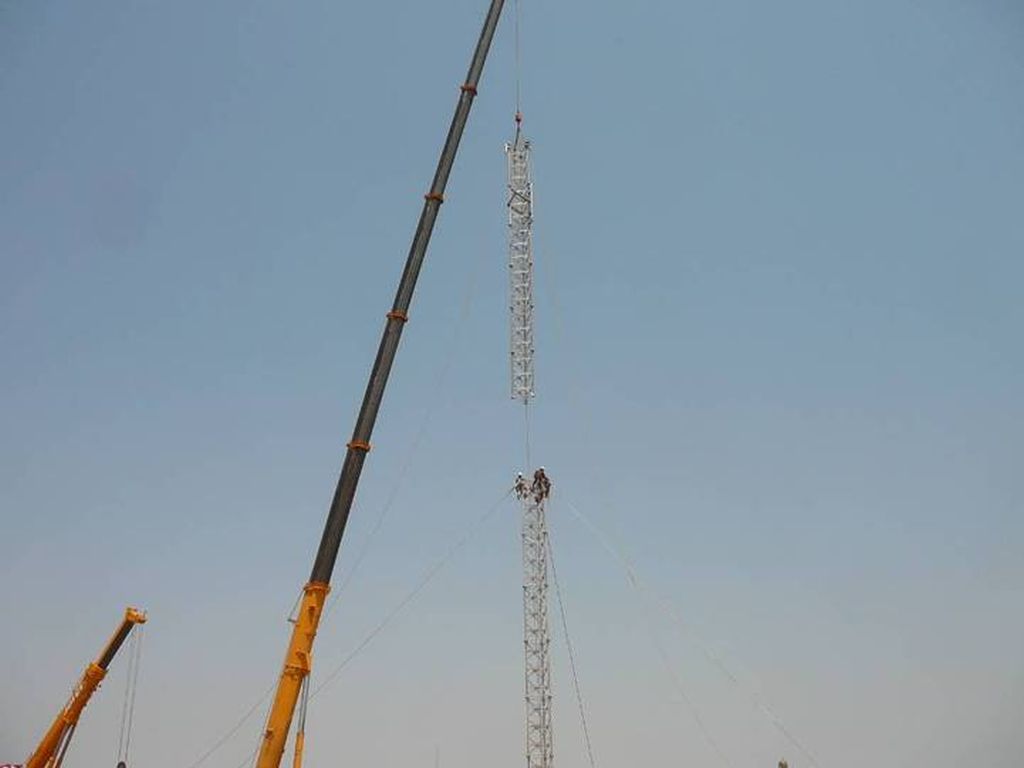

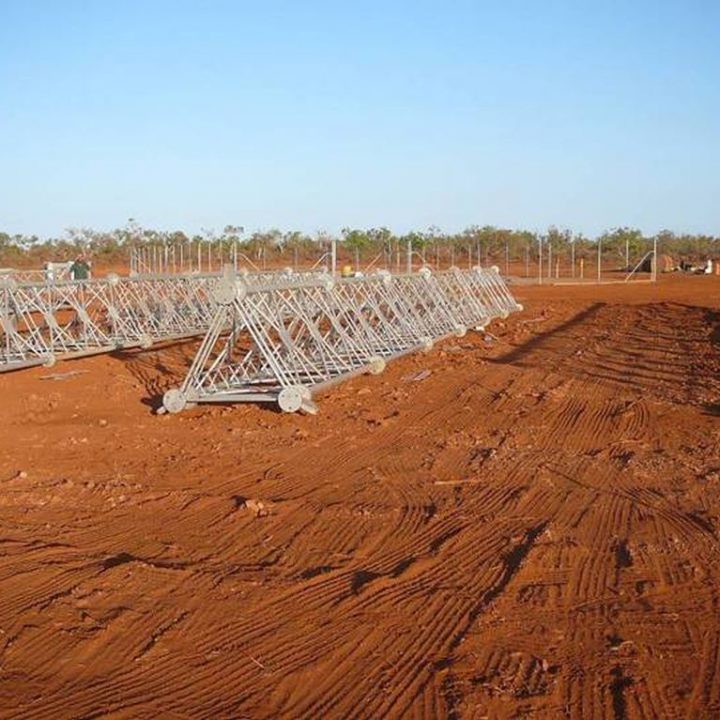

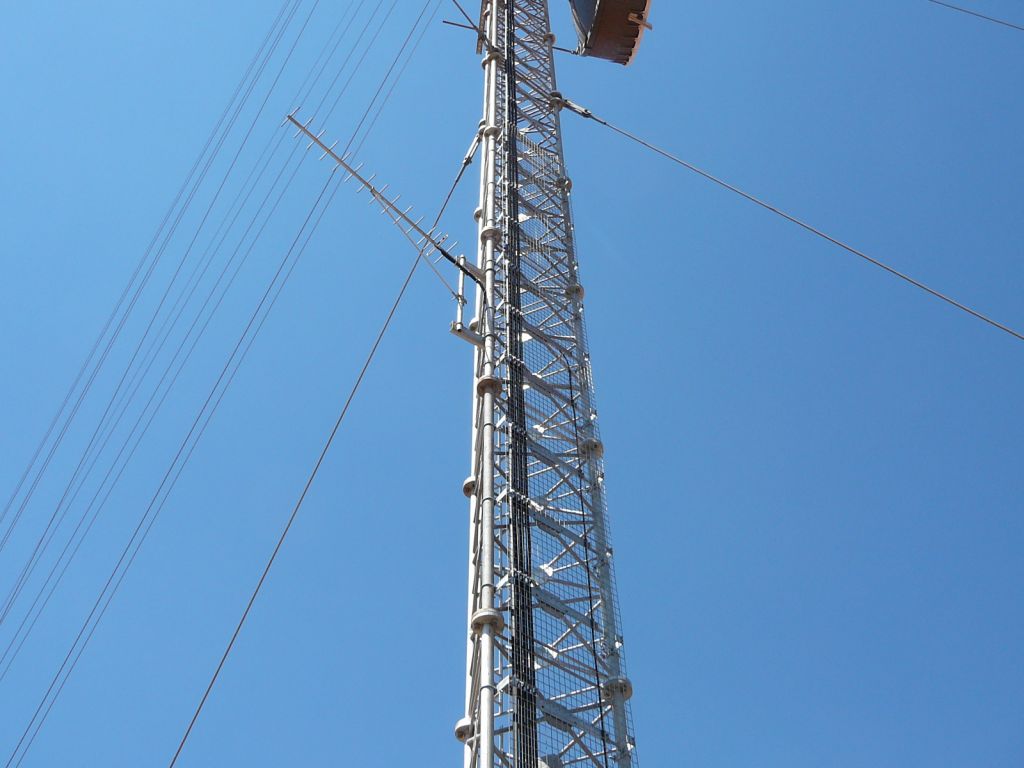

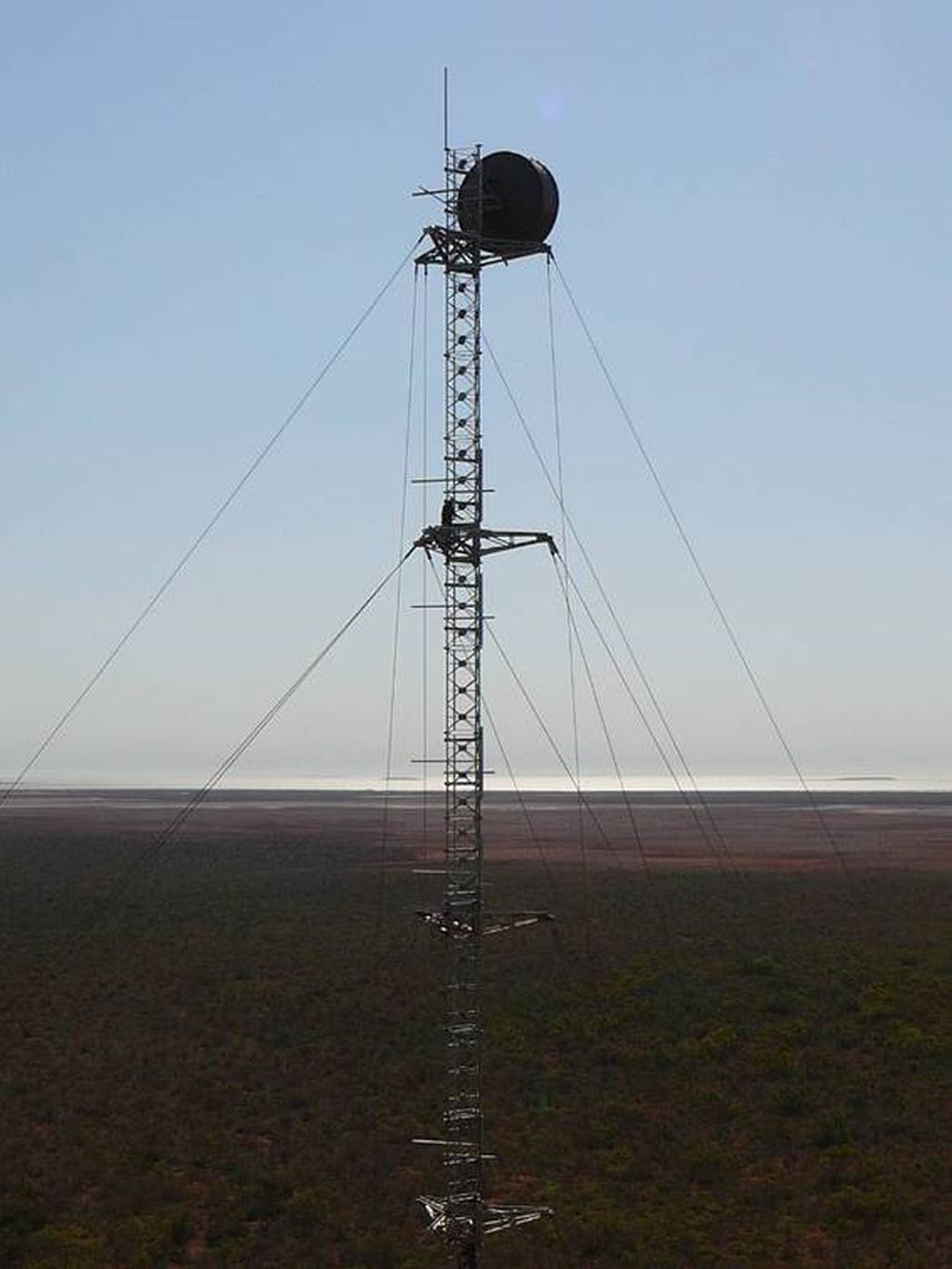

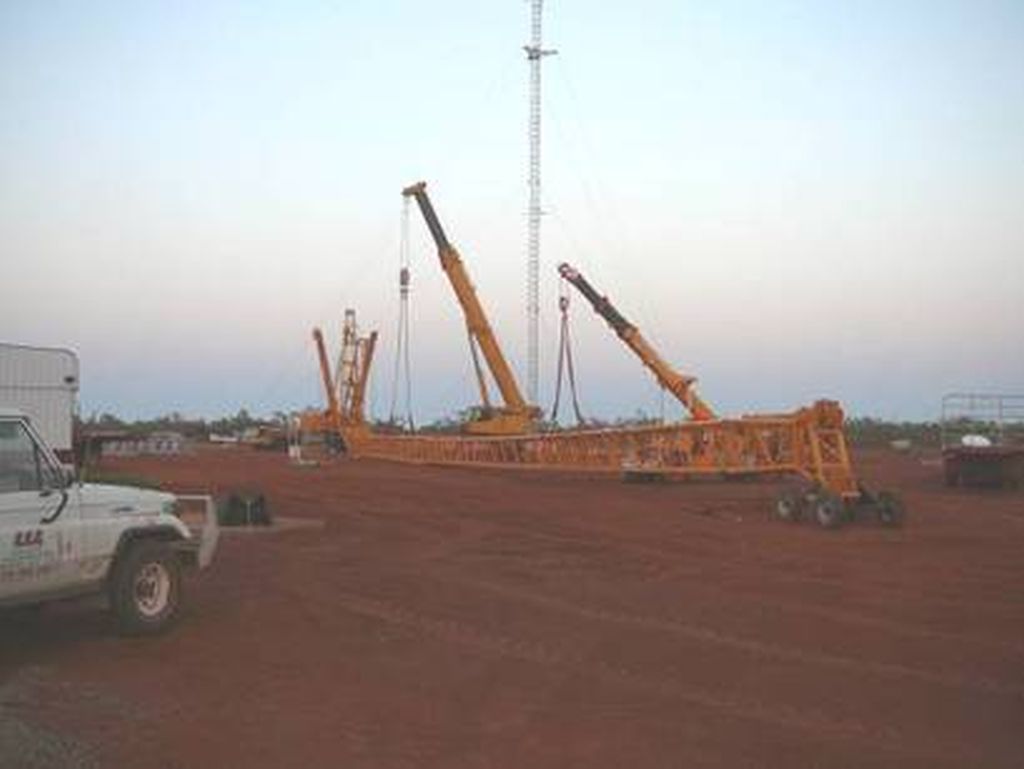

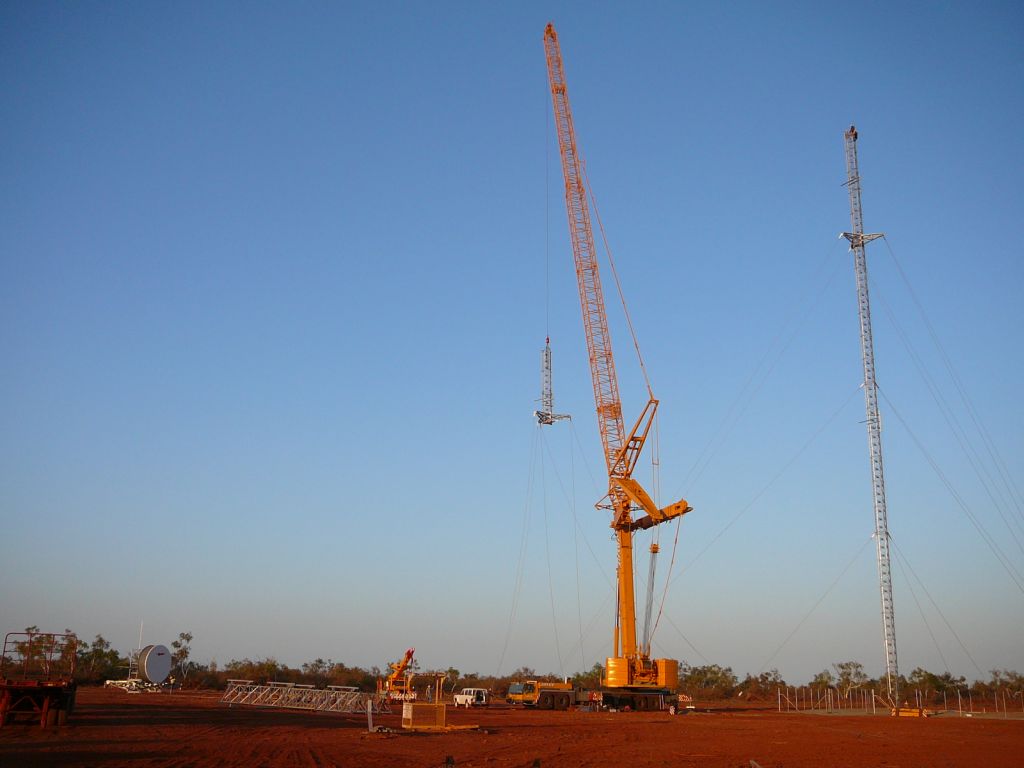

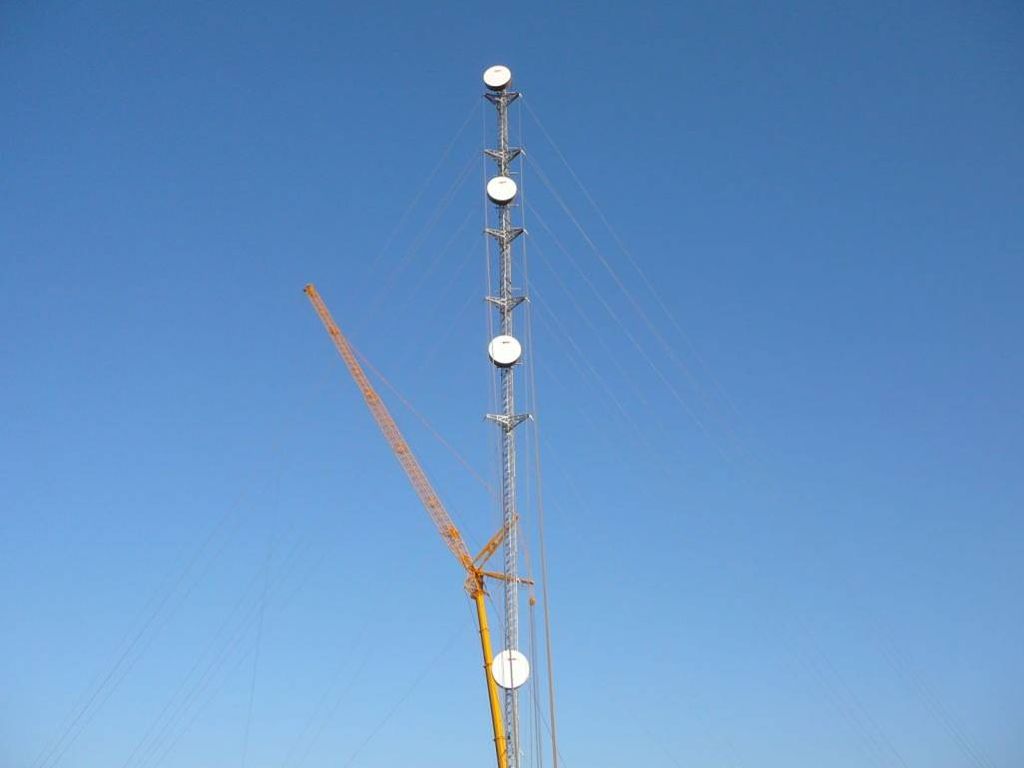

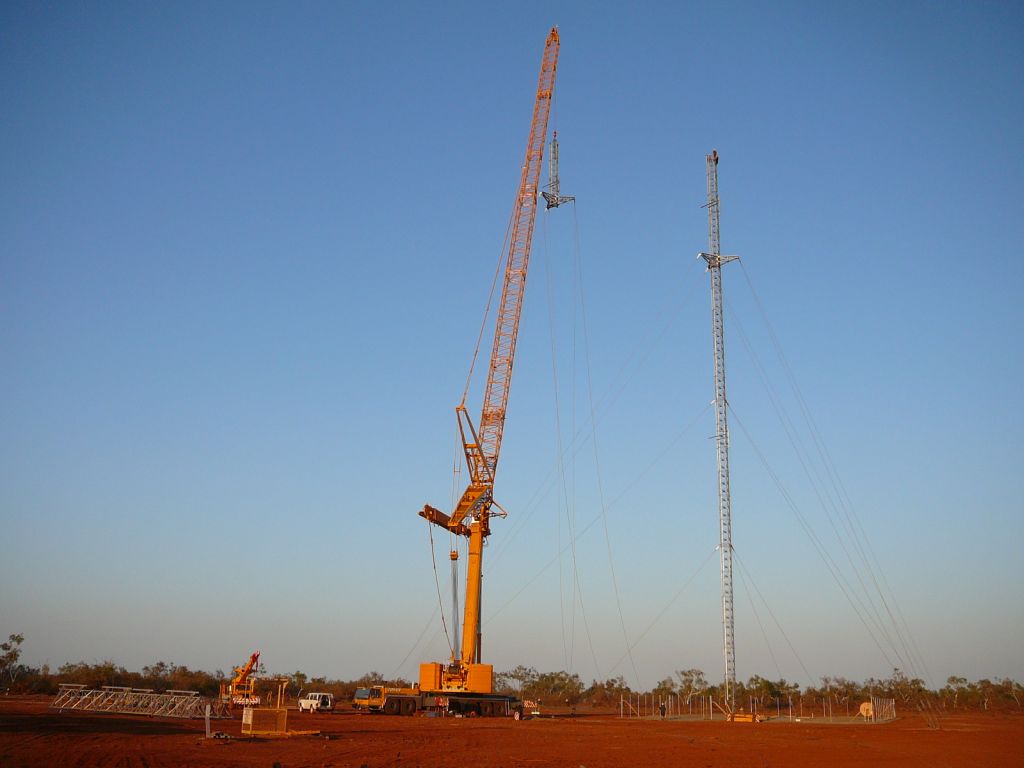

CCR was contracted to Telstra to provide a link from Barrow Island to the mainland. Hilda Well is a remote location on Mardie Station situated 150km south of Karratha in the Western Australia Pilbara region. The mast is 112 metre high and has a 1250mm face with an average section weight of 800kgs. There was over 730 cubic metres of concrete batched onsite. The project was completed by CCR in 7 weeks.

Job Duration

1 week preparation at the depot in Perth.
7 weeks on site construction and preparation work.
3878 Total man hours on the project with 0 Lost Time Injury Hours (LTI)

Job Staffing

5 Staff for foundation work
9 Staff for mast construction

Location

Project Gallery

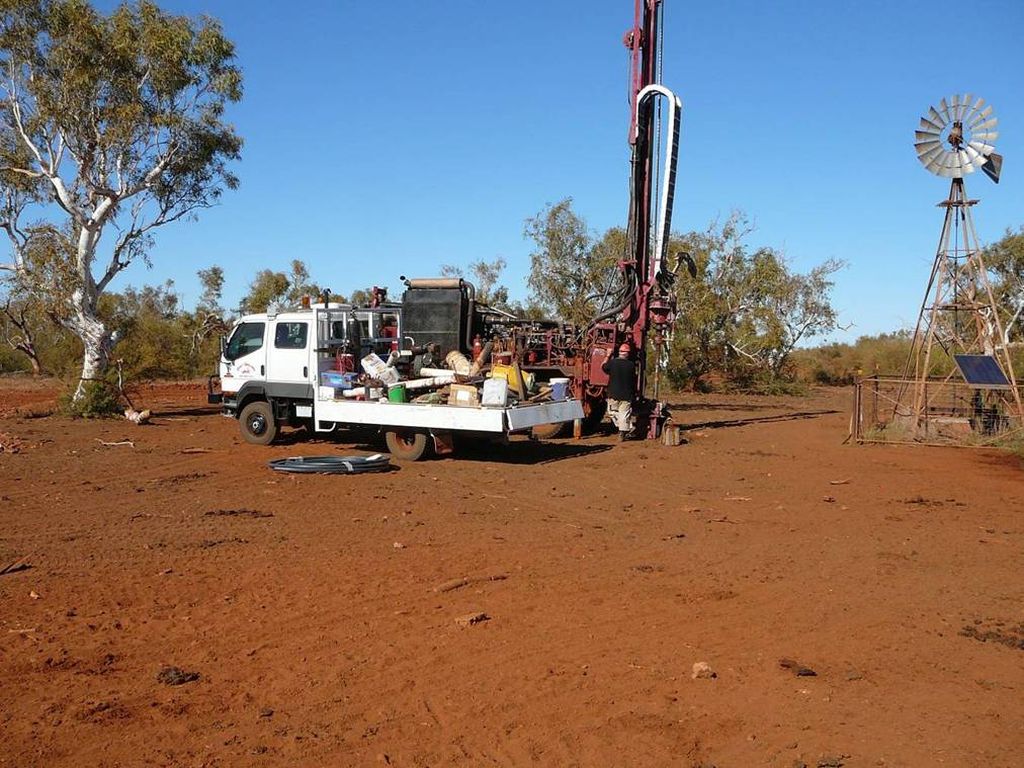

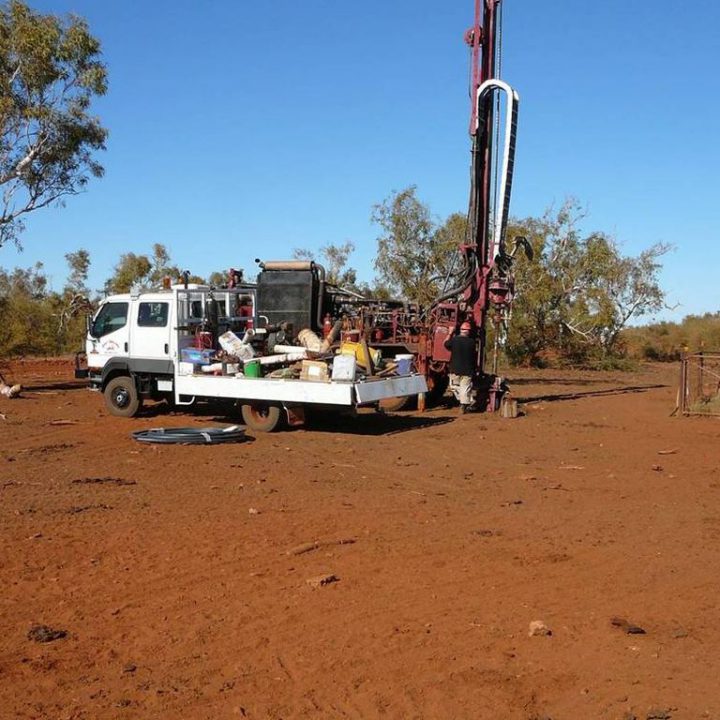

<strong>First Site Visit</strong><br />Site Visit & Inspection to ensure areas for construction and clearing were suitable for the project. When the site was deemed suitable, a fresh water bore was drilled due to the remoteness of the site.<br>

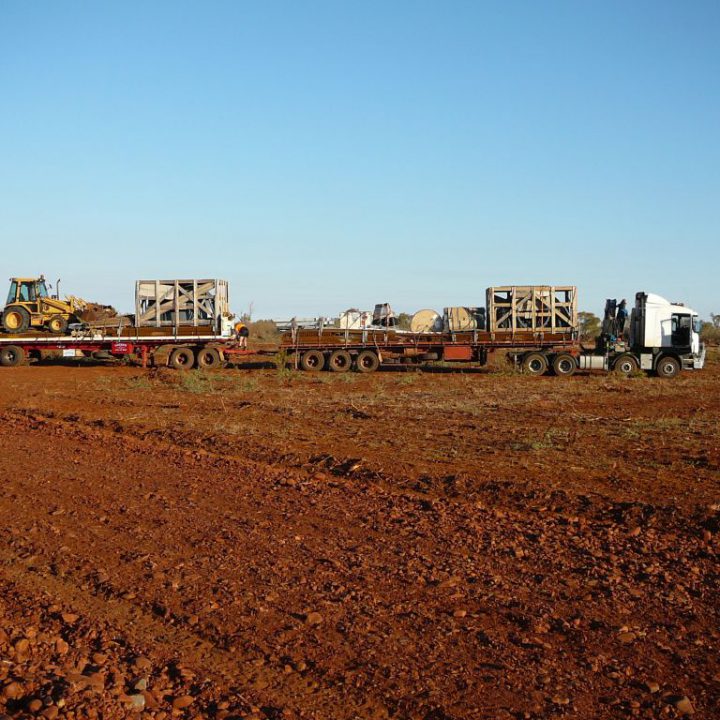

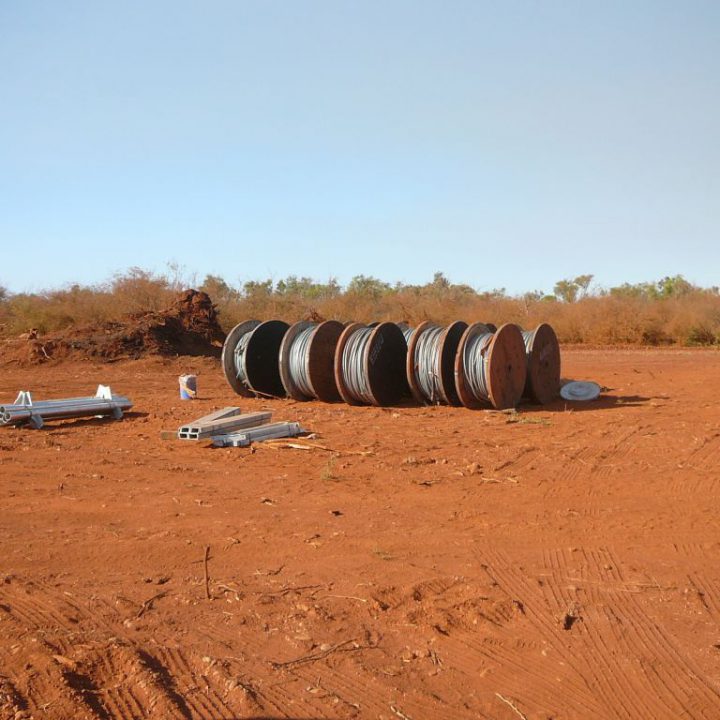

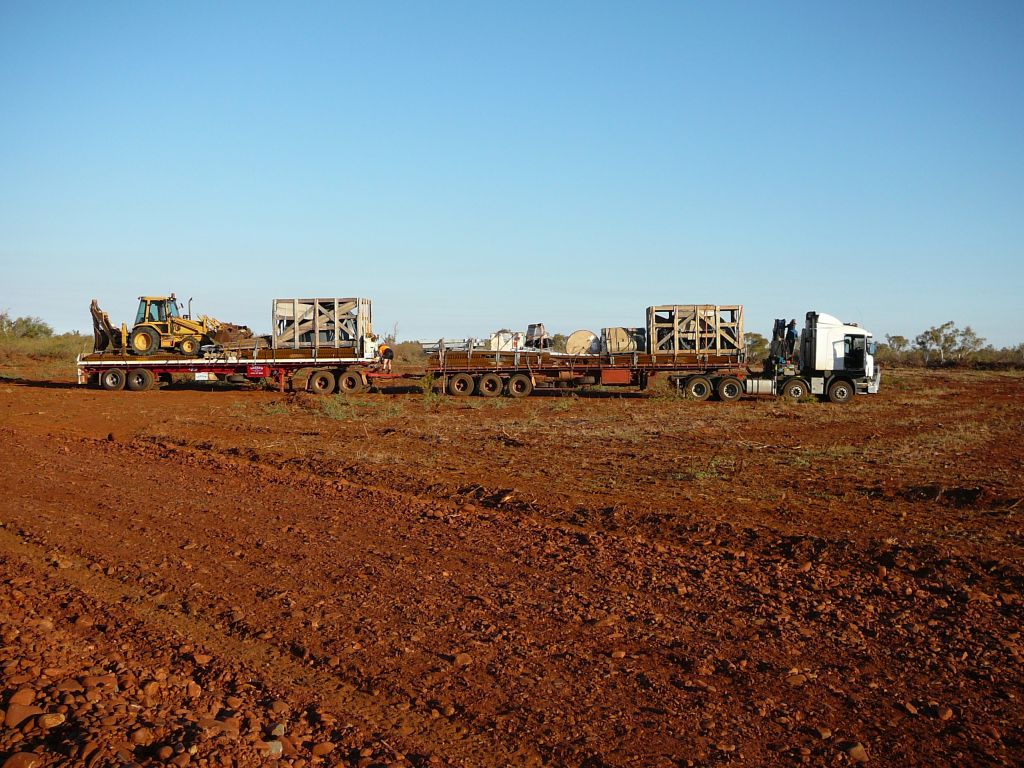

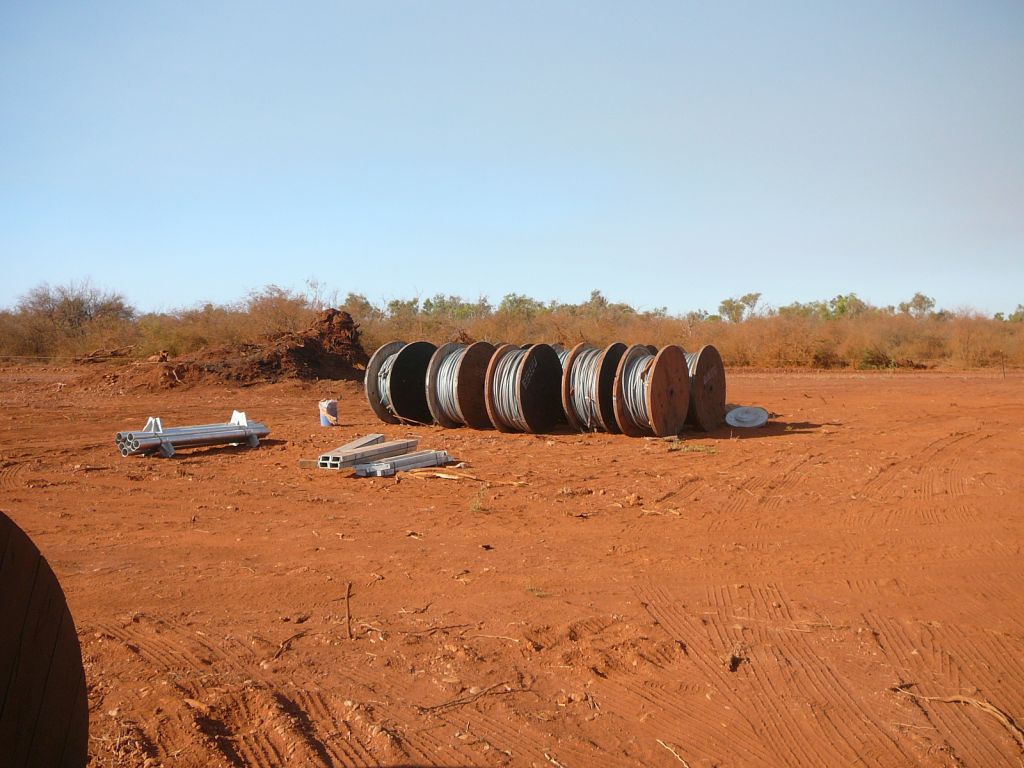

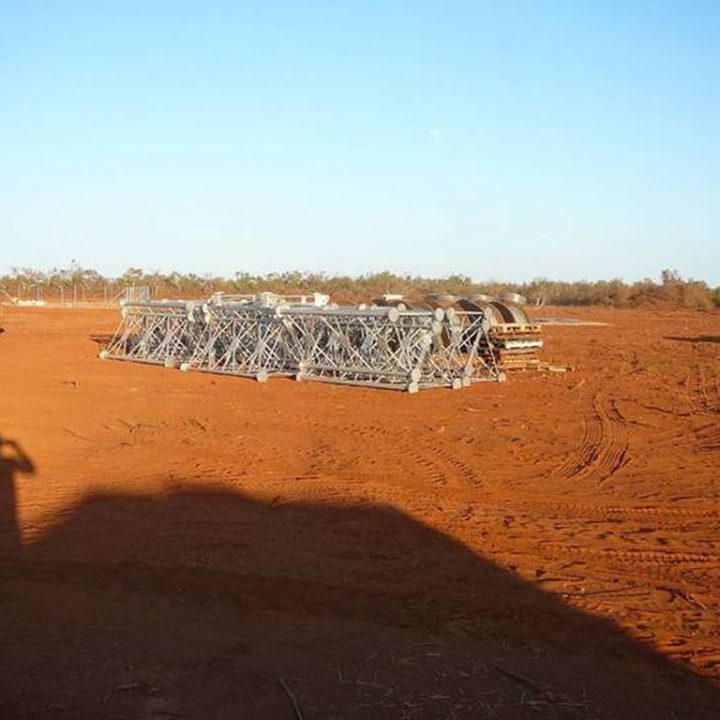

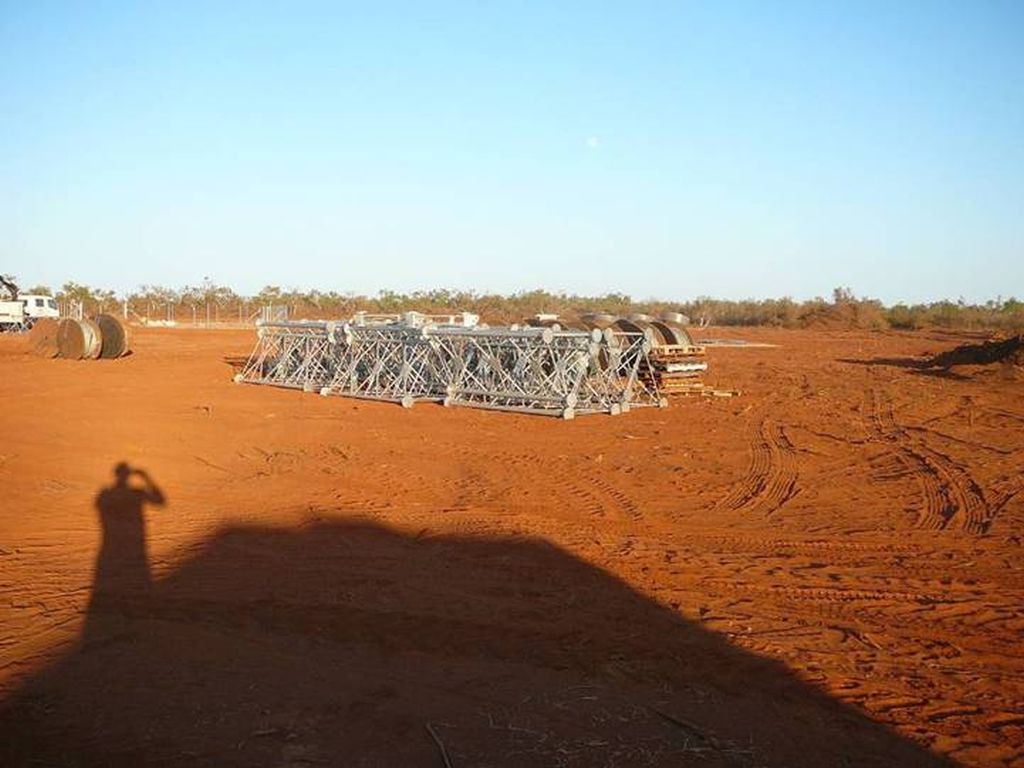

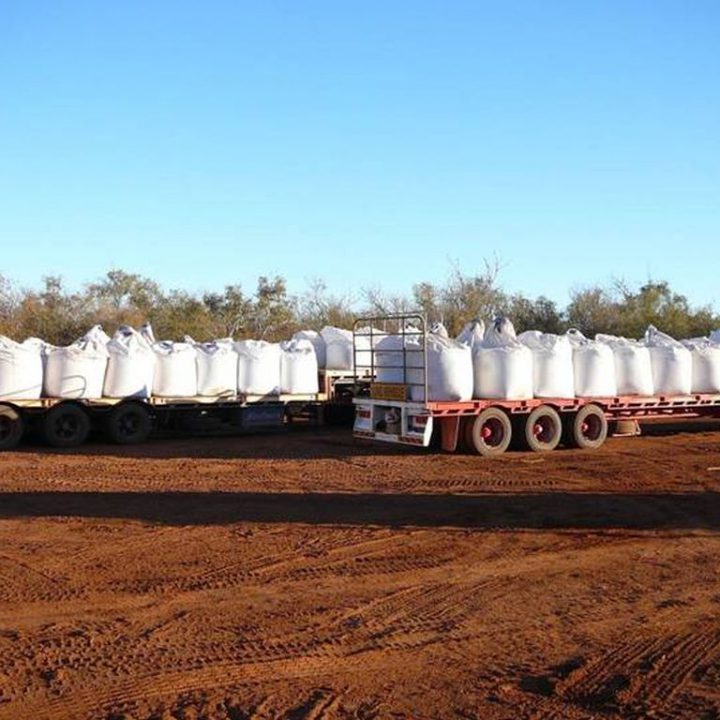

<strong>Second Site Visit</strong><br />2nd Site Visit - Logistics Management which included the organisation of transport of required materials to the site and securing the site with an electric fence.  The site was also surveyed to Telstra design.<br><br>

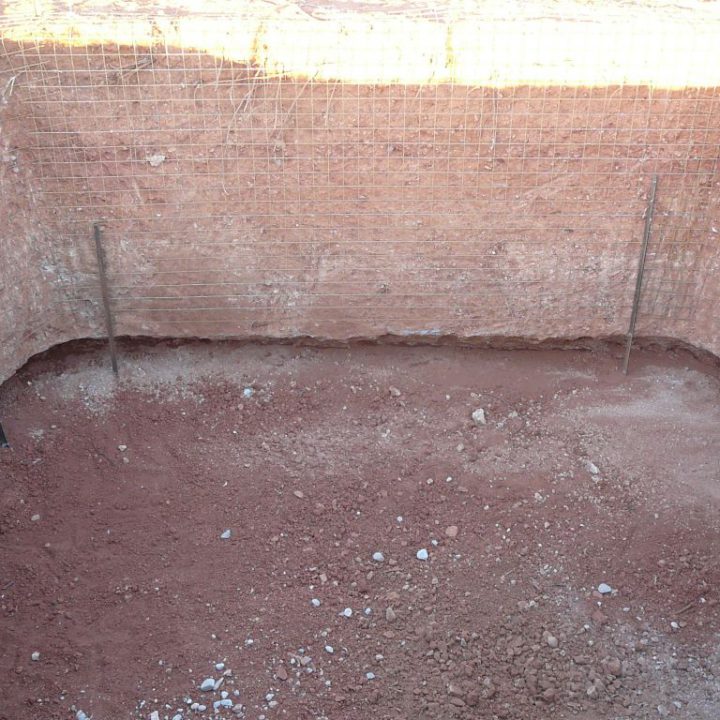

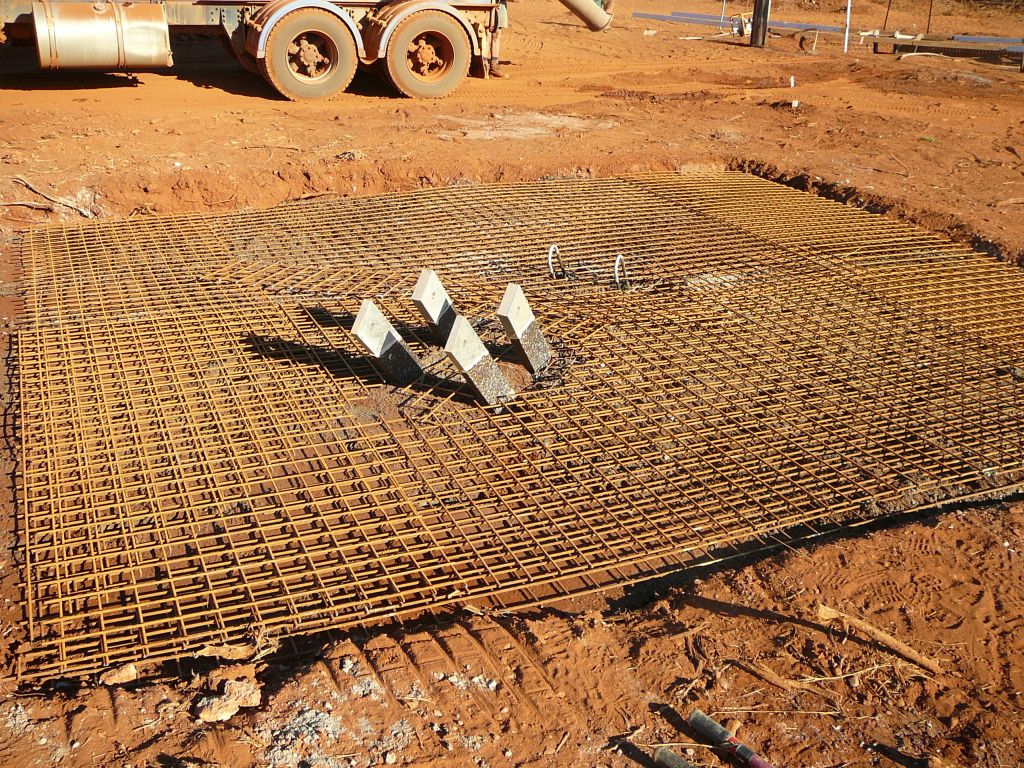

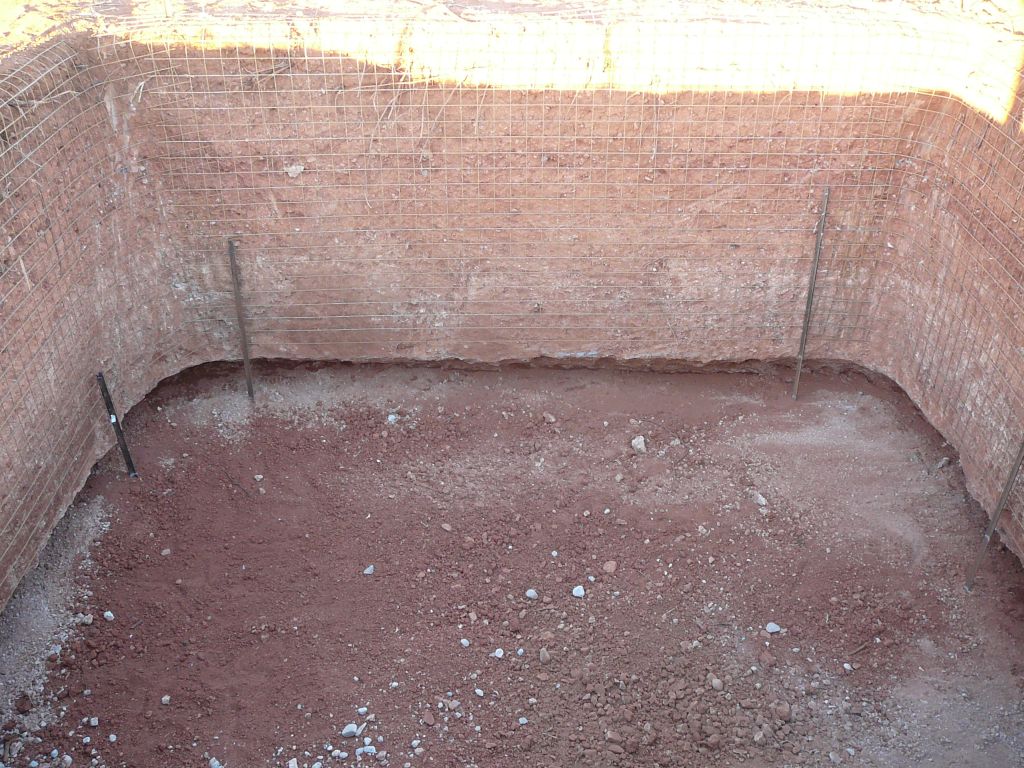

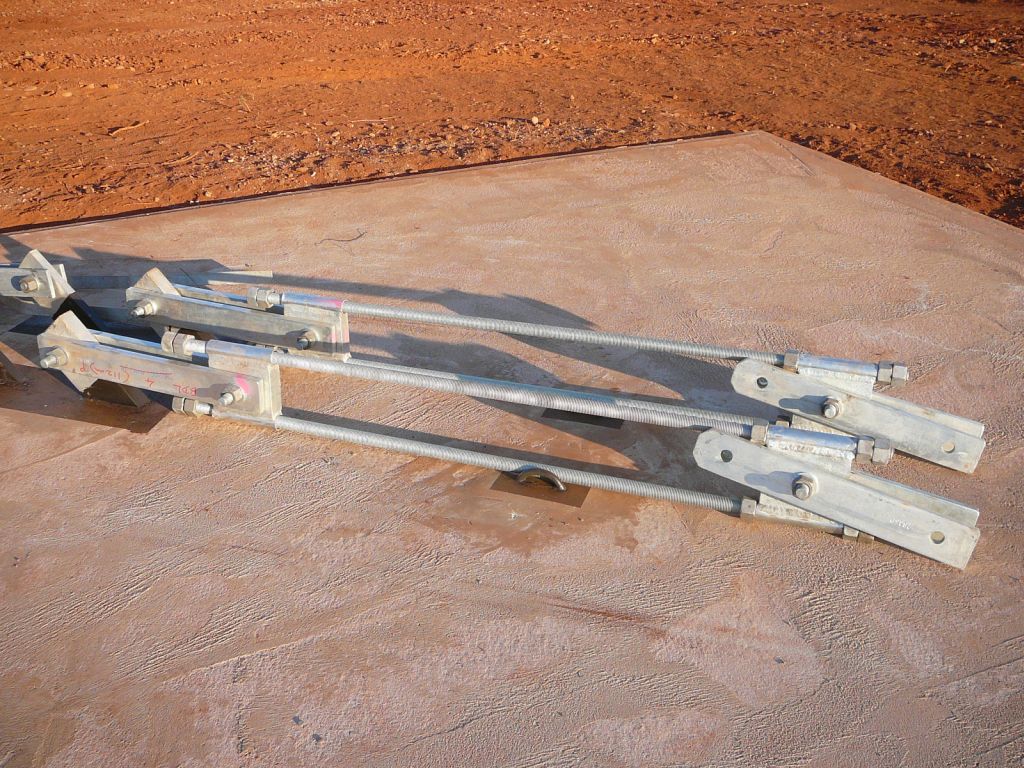

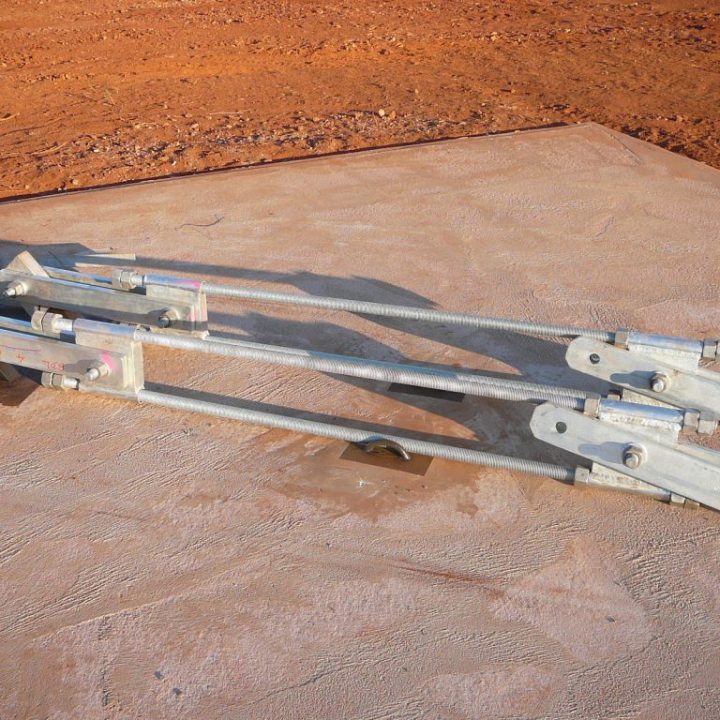

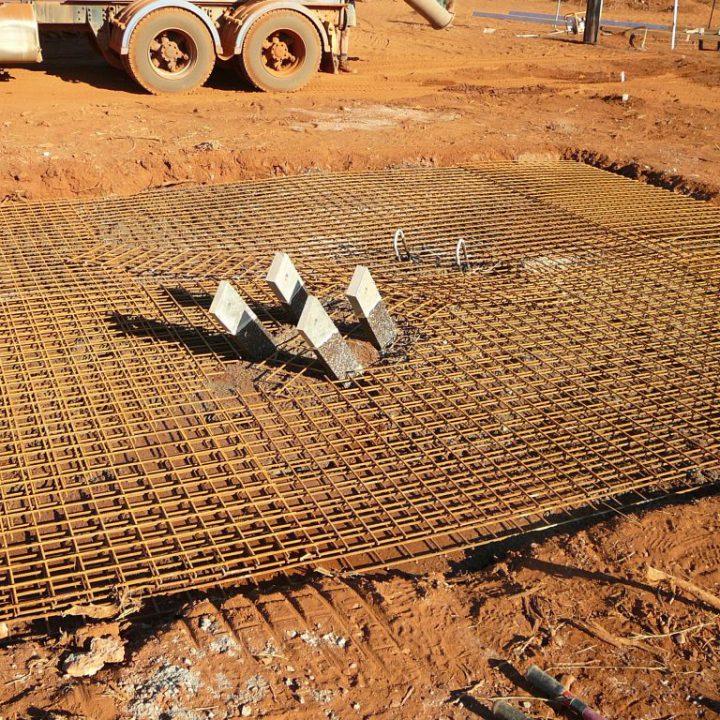

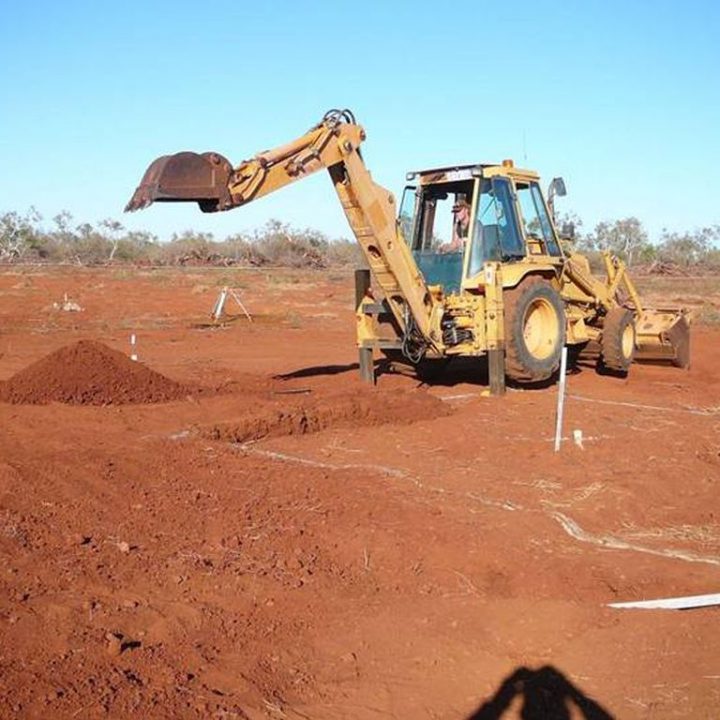

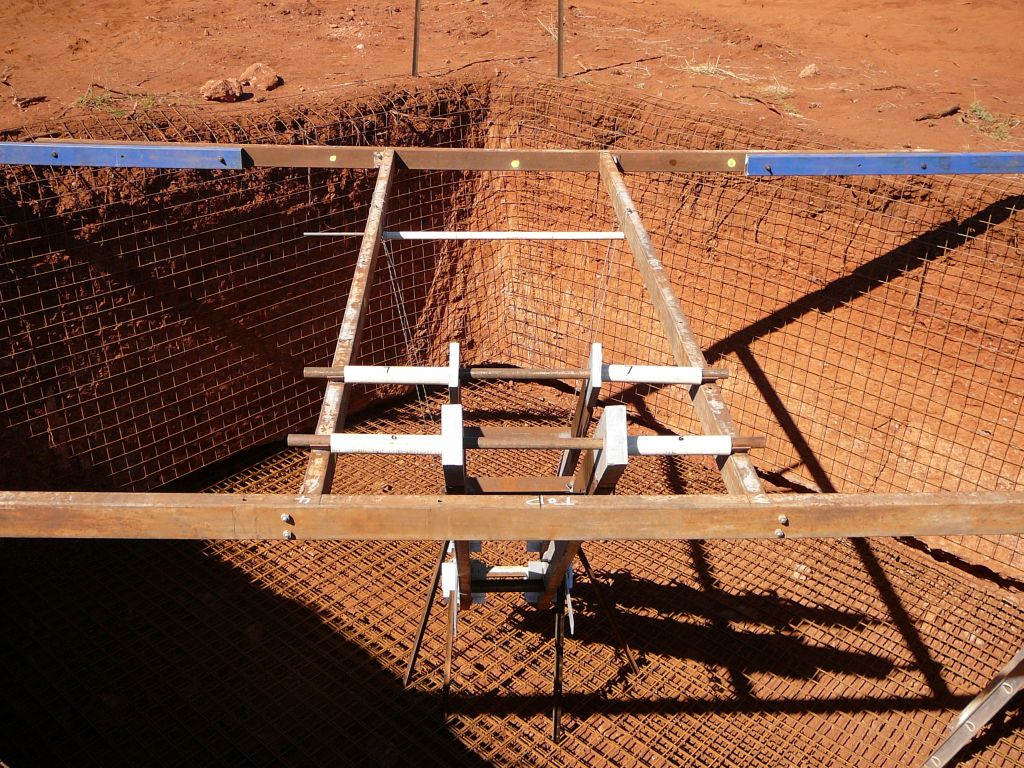

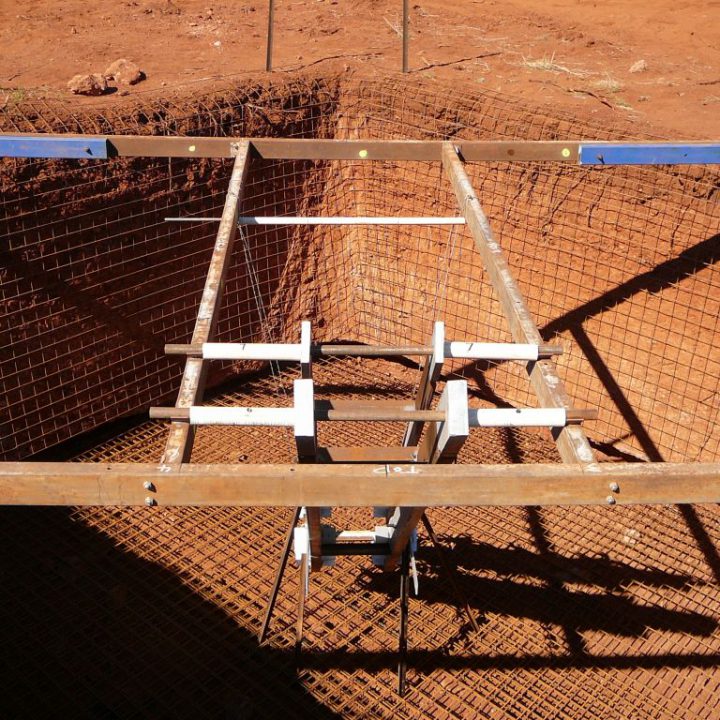

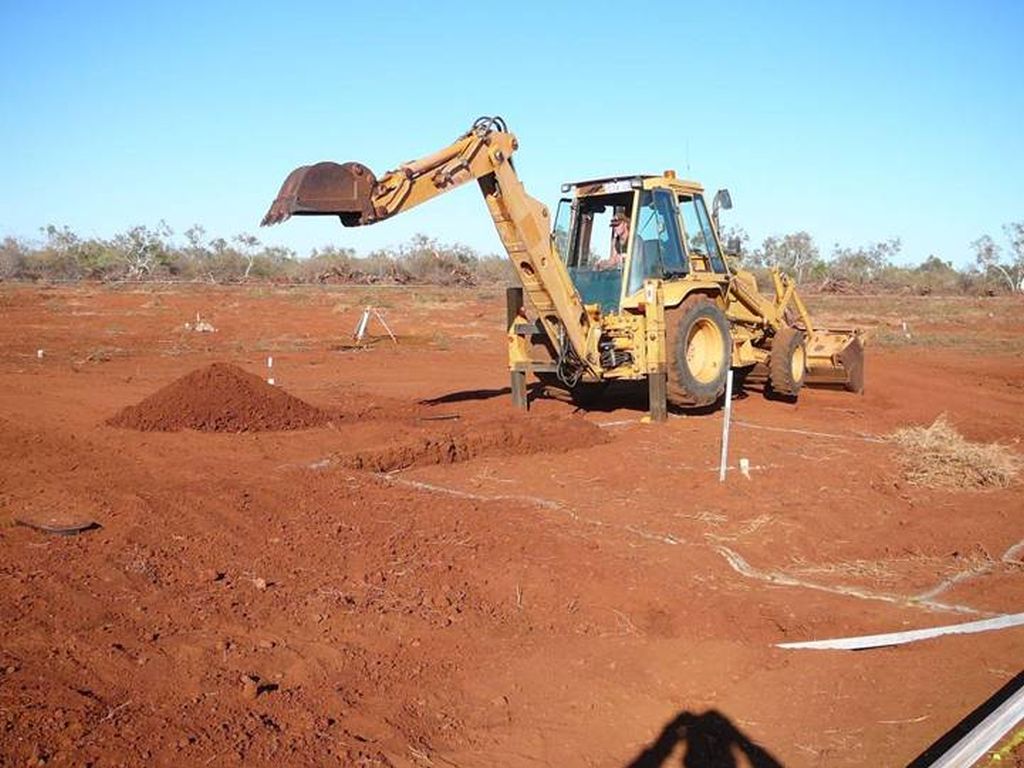

<strong>Start of Foundations</strong><br /><font>CCR prepared mast base 5 meter^2 * 1.5 m deep. We also prepared 4 sets per guy run of guy anchors which averaged 5m2 * 2.5m deep, ensuring all safety parameters were adhered to.<br></font>

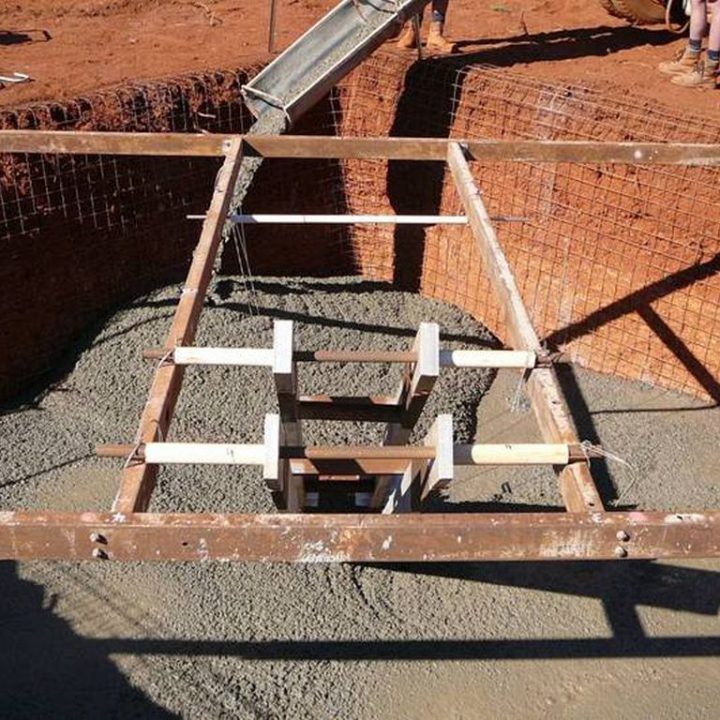

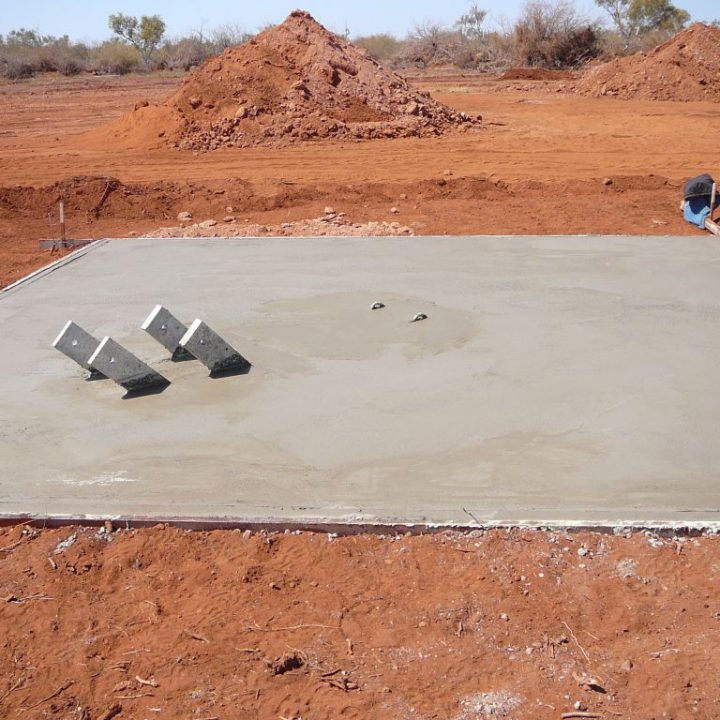

<strong>Start of Foundations</strong><br /><FONT size=+0>CCR prepared mast base 5m X 5m X 1.5m deep. The boys in the hole are Brendon Shinnick and David Jones</FONT>

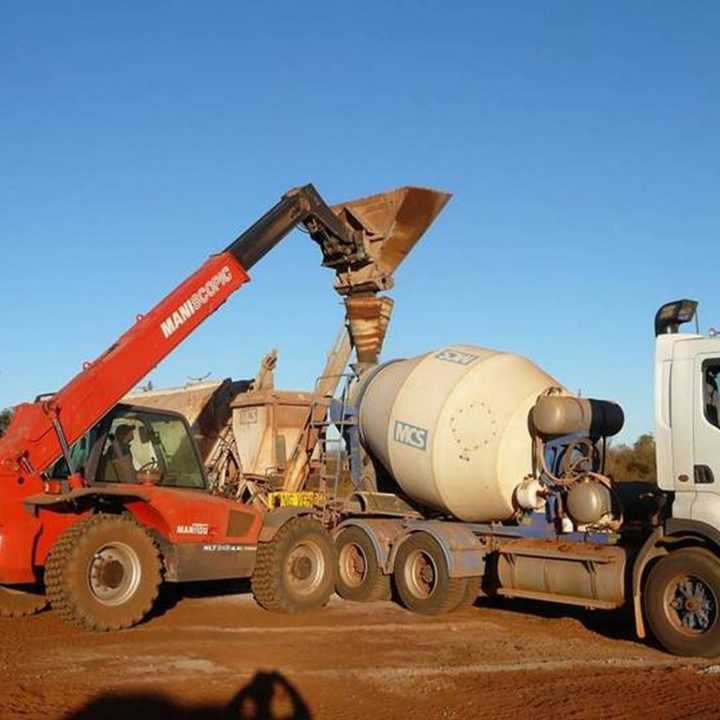

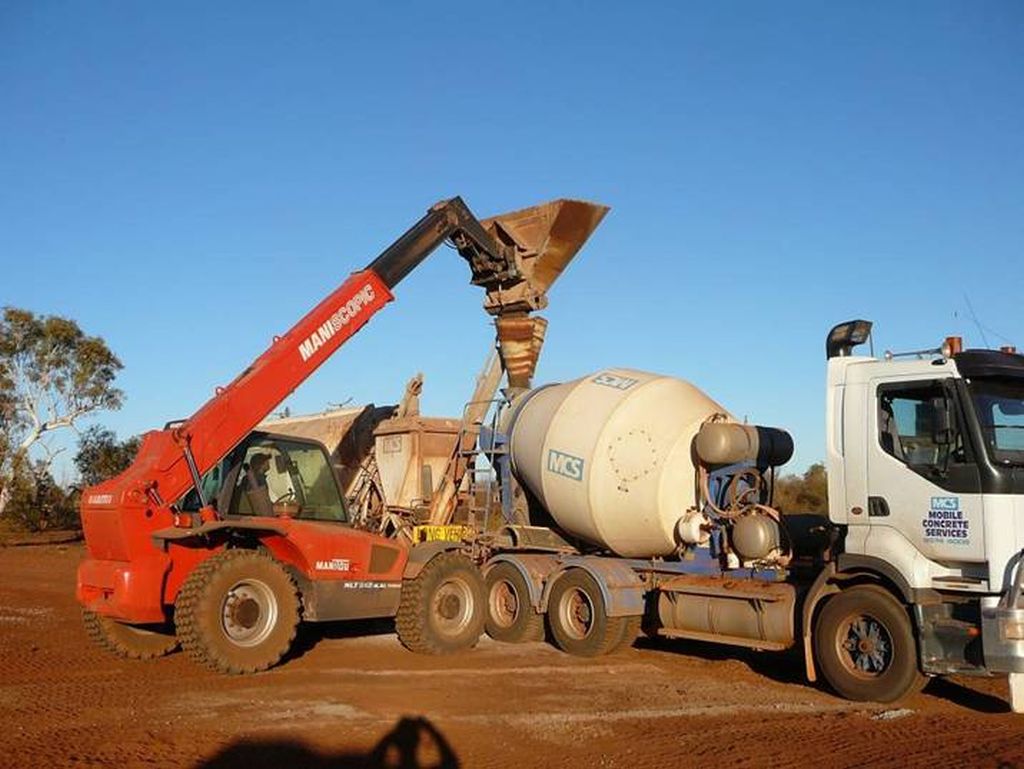

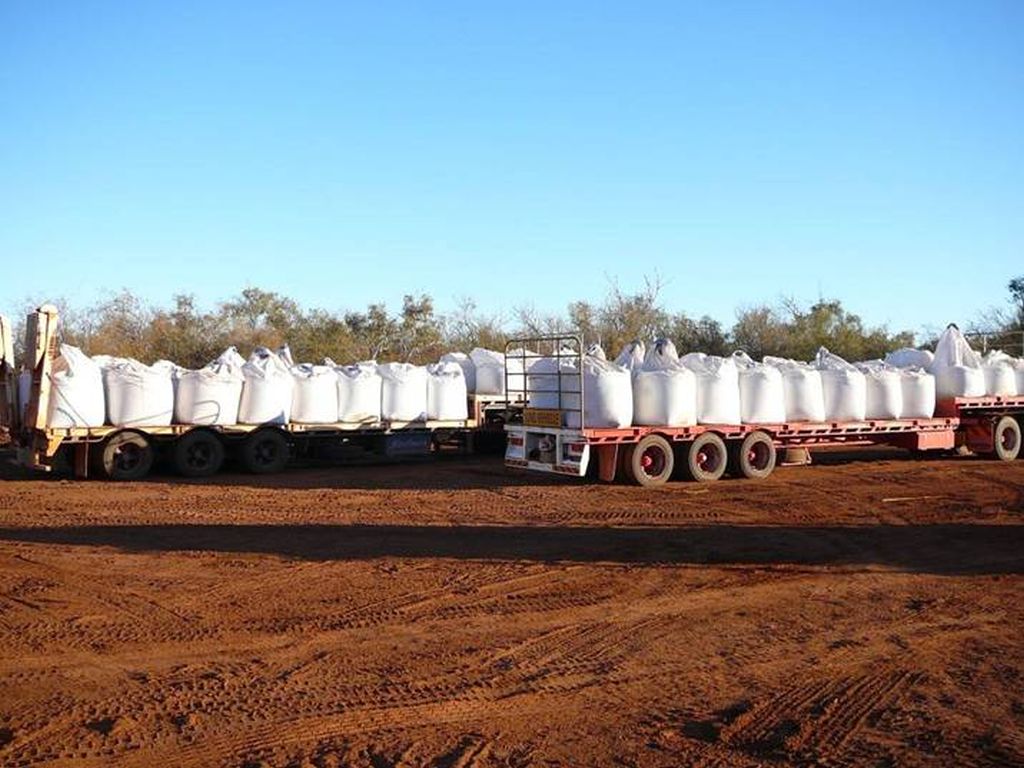

<strong>Concrete Pour</strong><br />There were 730 Cubic metres of concrete poured on site. All the concrete had to be batched on site using bore water, over 160 thousand litres was used excluding wash down water, CCR used only ISO 9001 accredited contractors to assist in the batching and testing of the concrete.

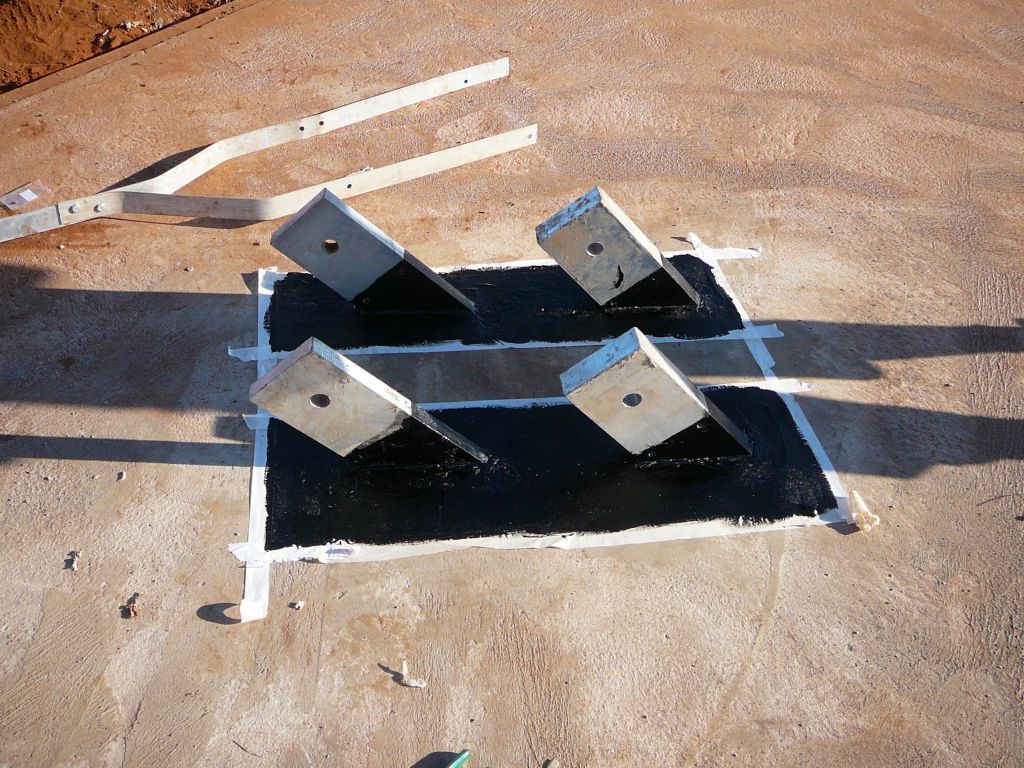

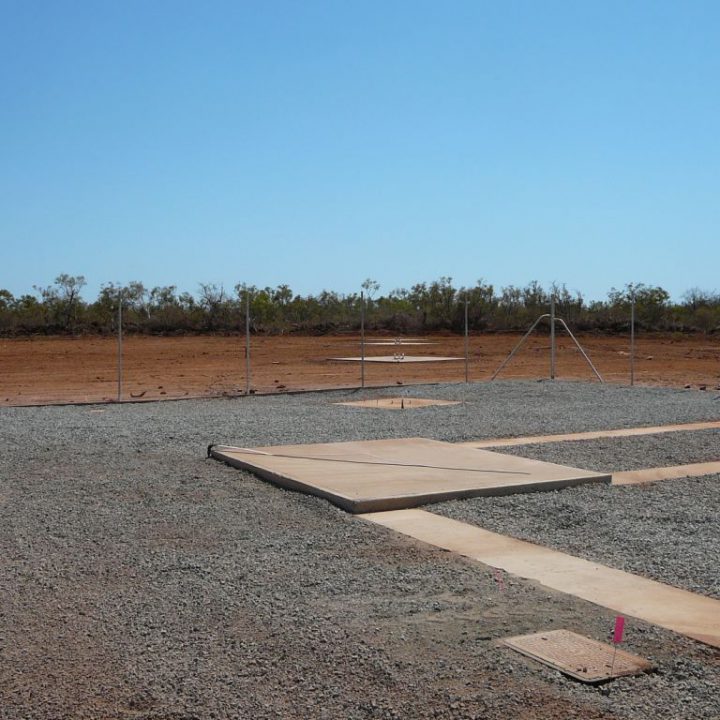

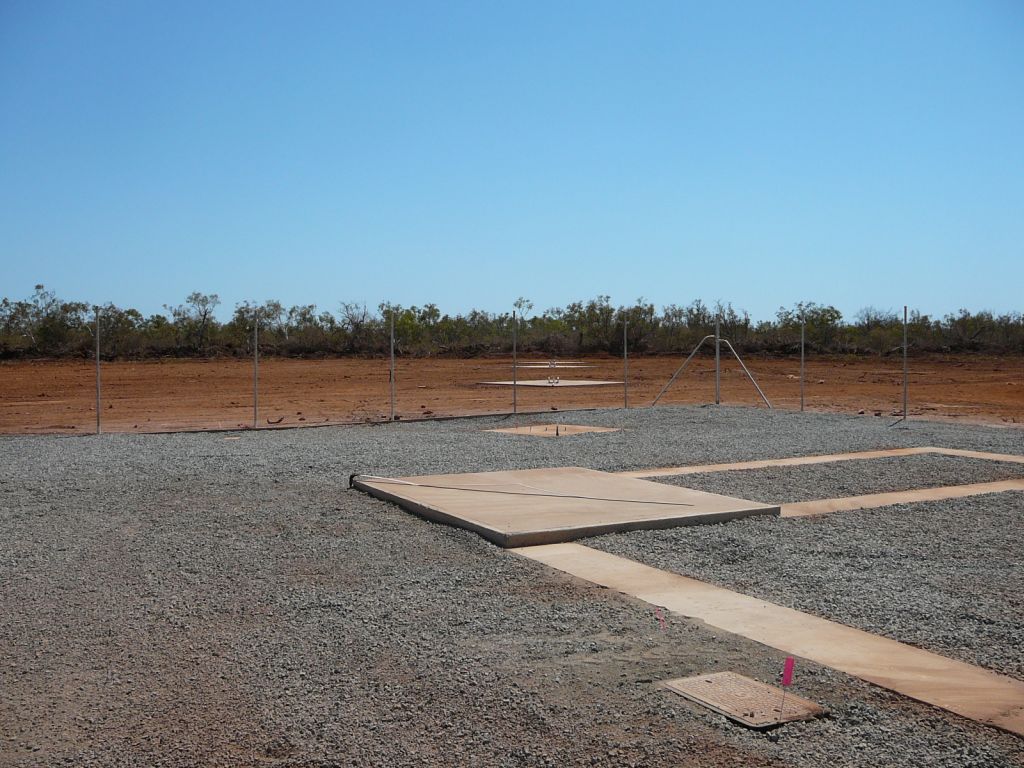

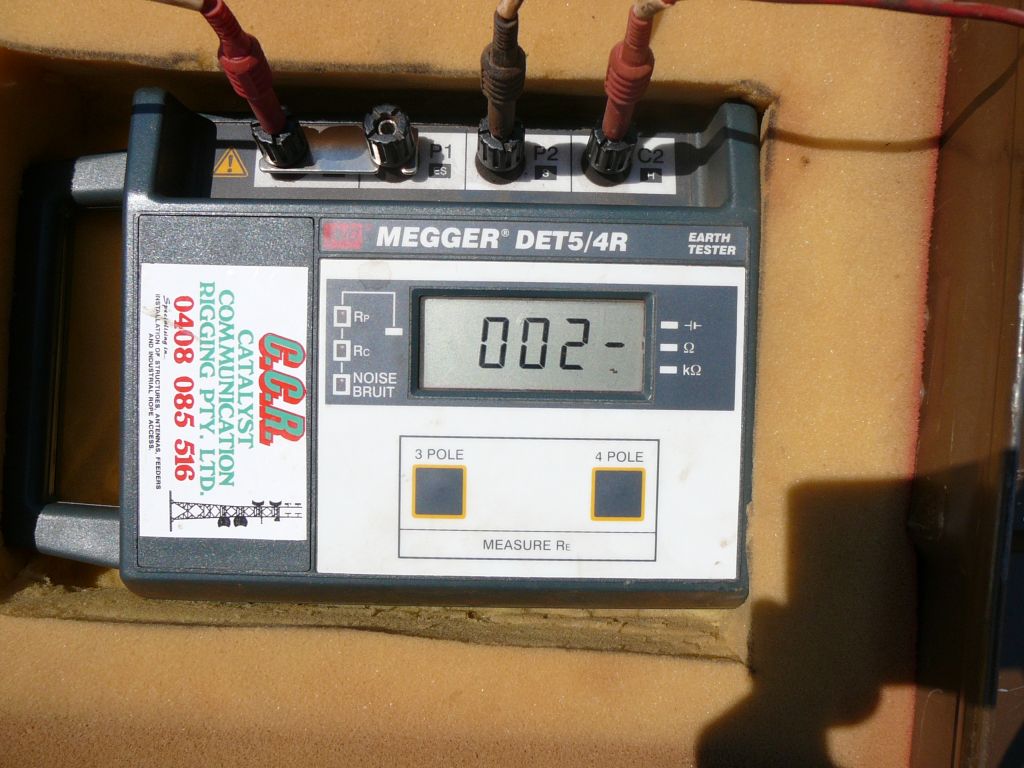

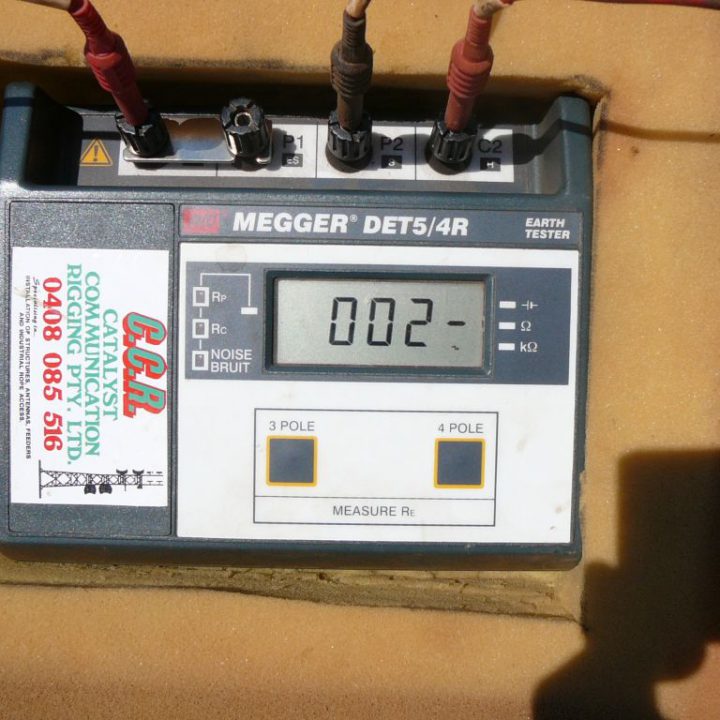

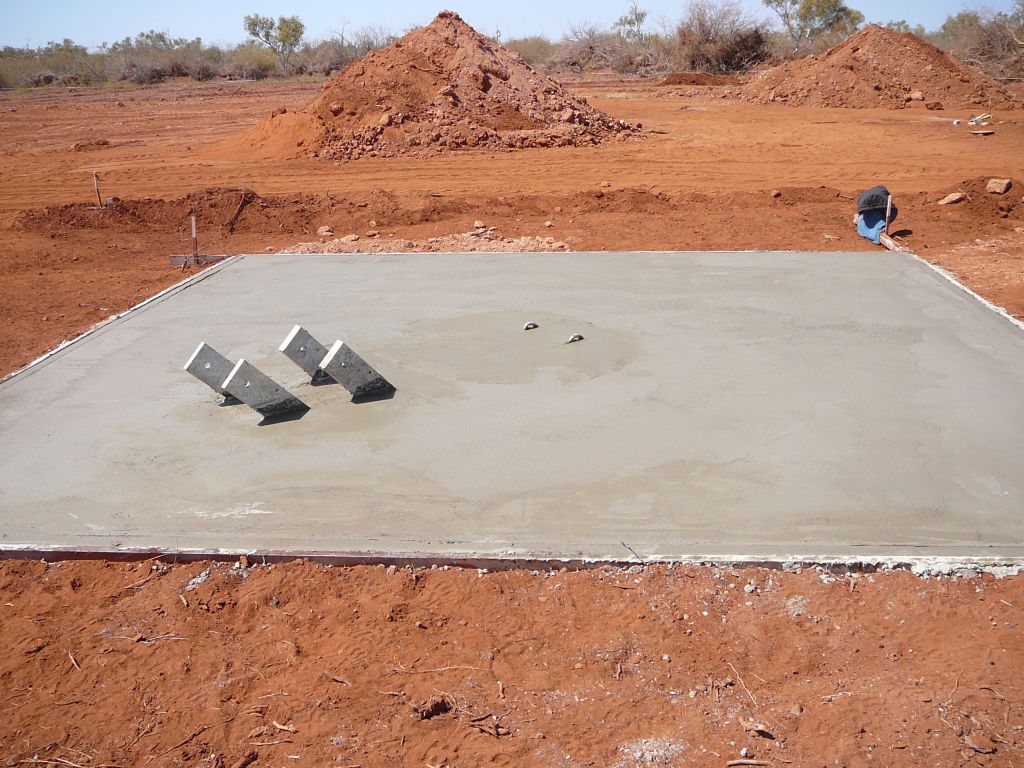

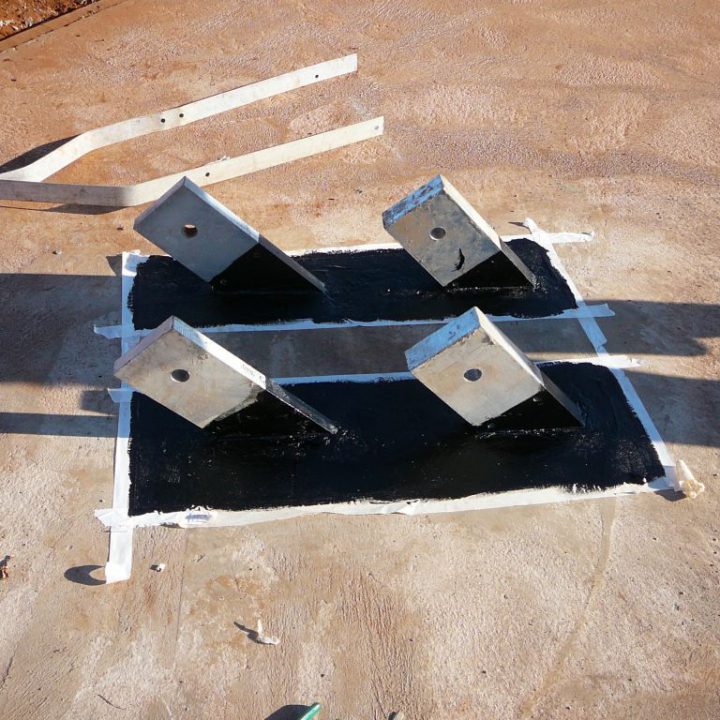

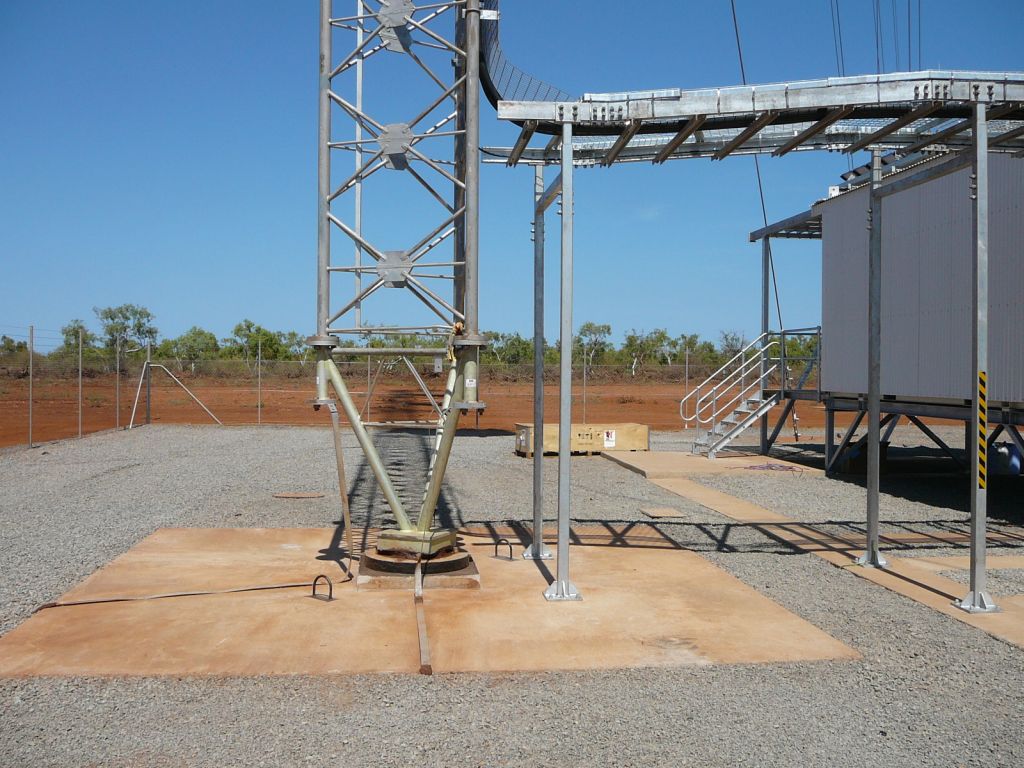

<strong>Earthing and Concrete tidy up </strong><br />Once the site was backfilled and all concrete was poured, CCR ensure all steel work exiting concrete is hydro-sealed. All trafficable areas in compound are weed matted with aggregate placed on top, with all fencing posts installed.<br><br>

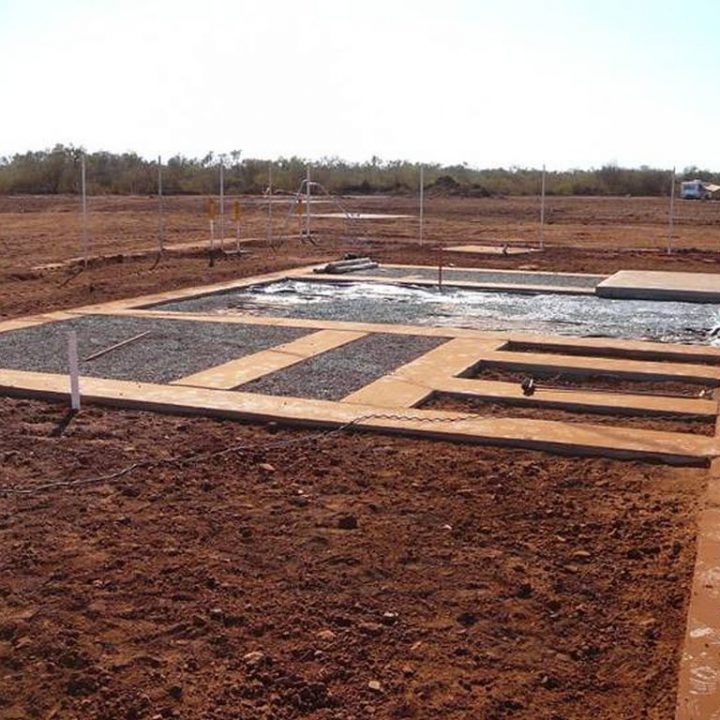

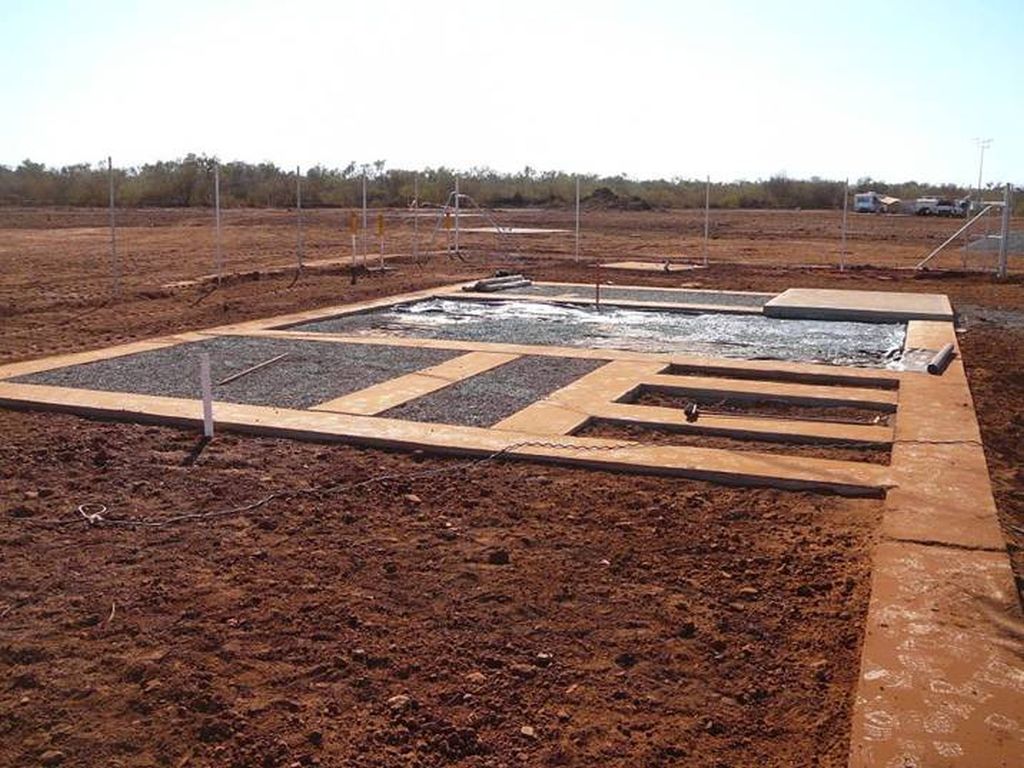

$Completion and Tidy up of foundations With help from Telstra, CCR organised the construction access roadwork\'s to the remote site. $ $Completion and Tidy up of foundations With help from Telstra, CCR organised the construction access roadwork\'s to the remote site. $ $Completion and Tidy up of foundations With help from Telstra, CCR organised the construction access roadwork\'s to the remote site. $
